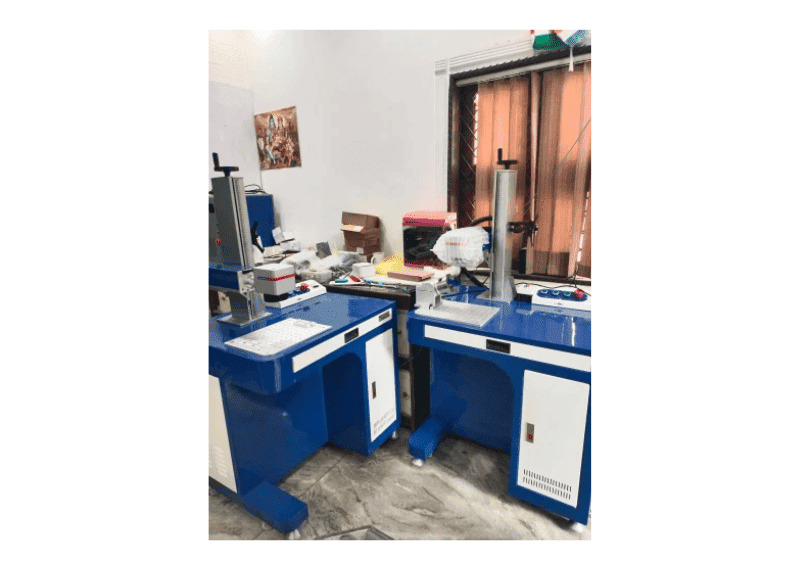

A 3D laser engraving machine is a high-precision device that uses a laser beam to engrave, etch, or mark material surfaces in three dimensions. Unlike traditional 2D engraving—which only marks the surface at a flat level—3D laser engraving can create depth, texture, and raised or sunken designs, resulting in detailed and realistic output.
The machine directs a focused laser beam onto material. By varying the intensity and speed of the laser, it removes material layer-by-layer, creating depth and contour, which produces a 3D effect. The process is computer-controlled, meaning you can engrave detailed images, text, logos, portraits, artwork, barcodes, QR codes, serial numbers, etc.
| Sr. No. | Specification | Details |
|---|---|---|
| 1 | Machine Type | 3D Laser Engraving & Marking Machine |
| 2 | Laser Source Type | Fiber Laser |
| 3 | Laser Power Options | 20W / 30W / 50W / 100W |
| 4 | Working Mode | 3D Dynamic Focusing |
| 5 | Engraving Depth | Up to 1.0–2.0 mm (Depends on Material & Power) |
| 6 | Marking Area | 110×110mm / 200×200mm / 300×300mm (Custom Available) |
| 7 | Wavelength | 1064 nm |
| 8 | Minimum Character Size | 0.2–0.5 mm |
| 9 | Engraving Accuracy | ±0.01 mm |
| 10 | Supported Material | SS, MS, Brass, Copper, Aluminium, Gold, Silver, Acrylic, Wood, Glass etc. |
| 11 | Cooling Method | Air Cooling |
| 12 | Software Compatibility | EZCAD3/ Compatible with AI,STL, DWG, DXF, PLT, BMP, JPG, PNG |
| 13 | Power Supply | AC 220V ±10% / 50Hz |
| 14 | Optional Attachments | Rotary Device for Rings/Rods/Curved Surface Engraving |
| 15 | Average Machine Lifespan | Up to 100,000 Working Hours |
