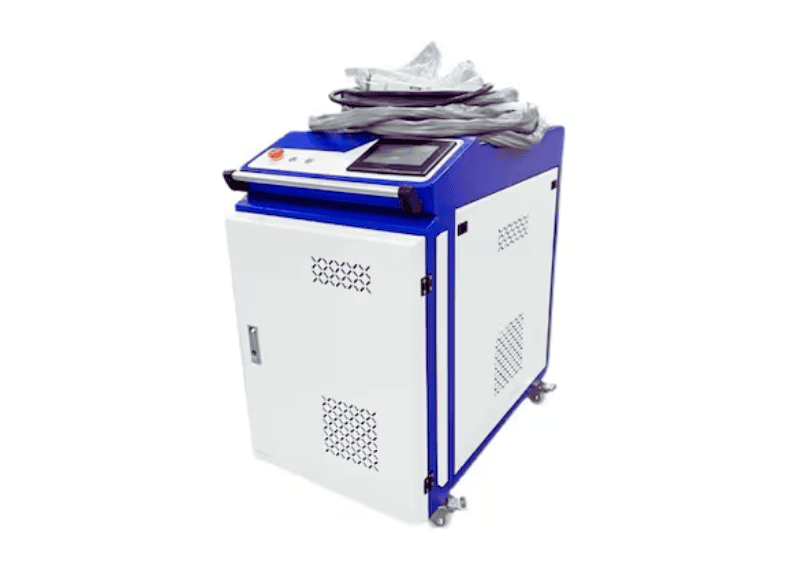

A Fiber Handle Laser Welding Machine is a state-of-the-art welding system that utilizes advanced fiber laser technology to join metals with exceptional precision and strength. This handheld design allows operators to perform flexible and efficient welding on complex parts and hard-to-reach areas. The machine provides a high-energy laser beam that produces deep, clean, and smooth welds with minimal distortion or post-processing. It is widely used for welding stainless steel, carbon steel, aluminum, and other metal materials. Compact, energy-efficient, and user-friendly, this laser welder is ideal for applications in fabrication, automotive, kitchenware, and industrial component manufacturing.
| Sr. No. | Specification | Details | Remarks | Additional Info |
|---|---|---|---|---|
| 1 | Laser Source | Raycus / Max | Handle: Aluminium, hand held, light | Easy to master |
| 2 | Laser Power | 1500W / 2000W | Wave Length | 1080 ± 5 nm |
| 3 | Laser Incidence | Coaxial | Power Stability | ±1.5% |
| 4 | Laser Wavelength | 1080 nm | Laser Repetition Frequency | 50–50,000 Hz |
| 5 | Collimated Focal Length | 50 mm | Beam Quality | M² < 1.3 |
| 6 | Focusing Focal Length | 100 mm | Red Light Indicates Output Power | 0.1–1 mW |
| 7 | Operating Voltage | AC 220V 50Hz | Fiber Core Diameter | 25 μm |
| 8 | Cross Power | < 5000 W | Output Cable Length | 10 m |
| 9 | Gas Source | 0.2 Mpa (Nitrogen) | Operating Mode | Continuous |
| 10 | Cooling Style | Water Cooling | Interface Type | QBH |
